Presets

• Preset contain prefabs that are converted to entities.

• There are several Entity type.

• The preset for conversion is selected from the Entity type in the Traffic Settings.

  Warning

  If the Vehicle Collection does not contain the appropriate Prefab ID, the Prefab will be ignored in the preset.

How To Create

Presets can only be created by using the Car Prefab Creator tool (step №5).

Where To Find

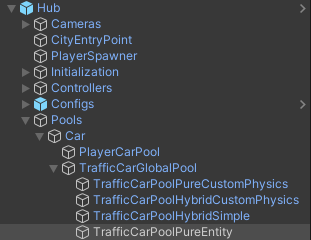

You can find in the scene here:

Entity Conversion

Make sure, that TrafficCarEntityPoolBakerRef in the subscene has the correct preset. Read more about config editing.

Examples

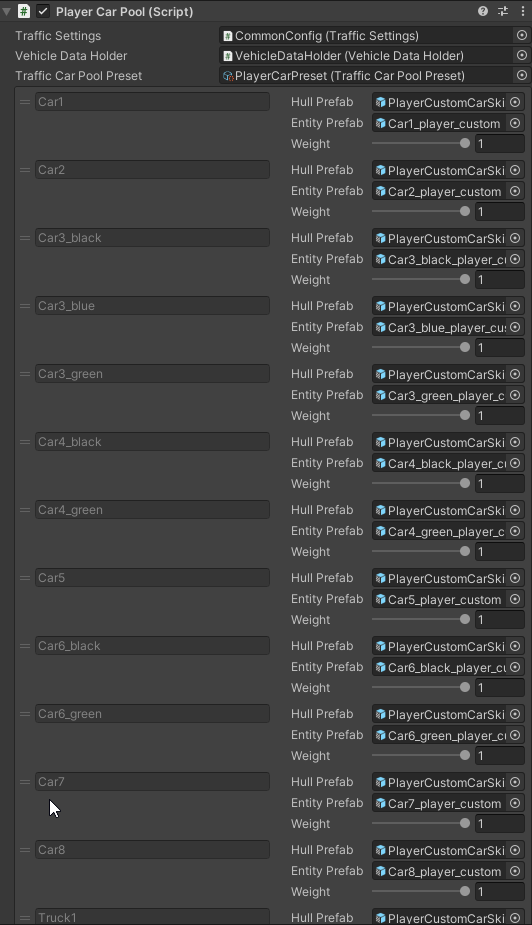

Hybrid custom entity player preset example

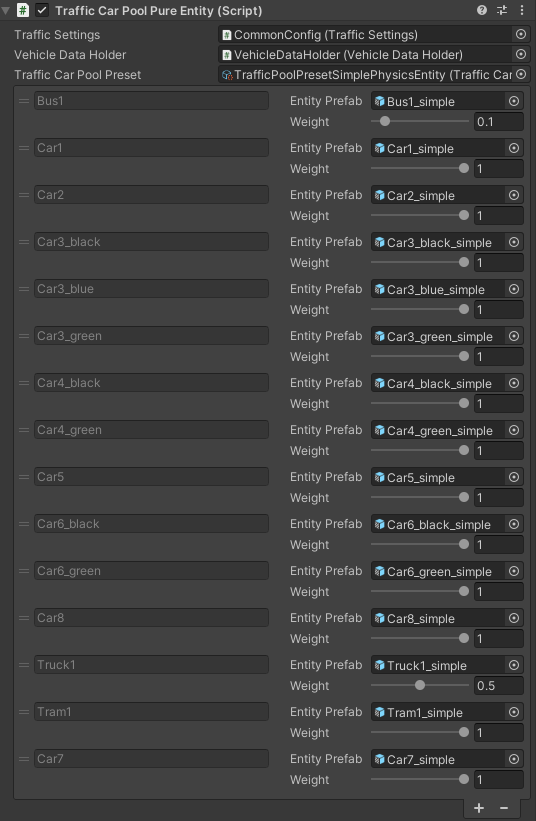

Simple physics entity traffic preset example

Note

Pure entity simple physics type and Pure entity no physics type has the same preset.
