Structure

Project Scenes

Demo : the main optimized demo scene of the project (read more about scene structure here).
Demo source : same as Demo scene, but contains raw 3D models without optimization, also scene streaming objects are disabled, including static physics colliders.
Traffic test scene : traffic test scene where all parameters can be tested with a set of most traffic situations.
Props test scene : props test scene where the workability of entities can be tested.
Traffic stress scene : stressed scene is extremely crowded with vehicles.
Traffic stress scene mobile : mobile version of Traffic stress scene.
Vehicle physics stress scene : stress scene for the thousands cars with Custom vehicle controller.
Vehicle custom physics test scene : scene for testing various parameters of the Custom vehicle controller.

Scene Hierarchy

Main scene.
City debugger : contains all the debuggers for the city.
Hub : contains the Entity Subscene Generator (read more on how to create it).
City Settings Initializer : contains the General Settings of the DOTS city [moved to the Config tab].
Main scene configs (read more about the config editing workflow).
Pools : contains all the entity presets.
Spawnpoint : spawnpoint of the player (assigned in the PlayerSpawner).
Subscene (EntitySubScene) : subscene into which all of the entities are converted (generated by the Entity Subscene Generator).
Subscene configs (read more about the config editing workflow).
EntityRoadRoot : object root generated by the Entity Subscene Generator.
Road : road parent (read more about the road editing workflow).

Scene Components

Road Parent

The root of all crossroads in the scene.

How To Use

You read more here.

Settings

Connection waypoint offset : automatically adds a waypoint at each selected offset to the automatically created paths (if the value is greater than zero).
Connect segments : creates the automatically generated paths.
Reset segments : reset the automatically created paths.
Add crossroads : adds crossroad if missing.
Bake path data : bake road data.
Clear unattached paths : delete the paths that are not connected to any a TrafficNode.

Entity Subscene Generator

Where To Find

Create city base [if missing, optional step].
Select Hub in the scene.

How To Use

You read more here.

Settings

Entity subscene save path : save path of subscene.
Entity subscene name : name of subscene.
Autosync configs : on/off auto-sync config on main scene & subscene.
Move tools : on/off moving of following tools: RoadSegmentPlacer.
Move lights : on/off moving of subscene.
Move props : on/off moving of props.
Move surface : on/off moving of the selected physics surface.
Copy physics shapes : on/off feature of physics shape cloning.

Config

Copy to subscene : subscene configs will be synchronised with the main scene.

Copy from subscene : main scene configs will be synchronised with the subscene.

Buttons

Generate : generates subscene.

Move back : move road from subscene to the main scene (can be useful for editing roads in the main scene due to Editor performance).

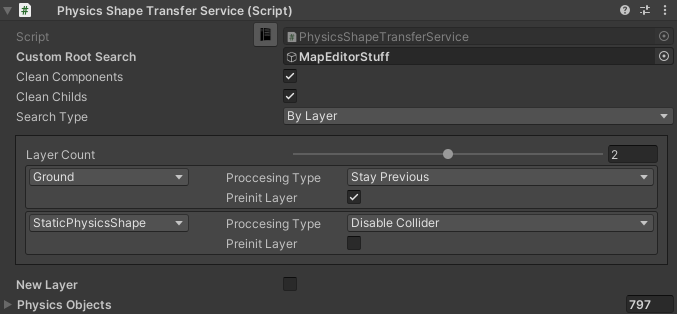

PhysicsShape Transfer Service

Tool for cloning physical shapes from the main scene to the subscene.
There is also a tool exists to maintain both the default physical world and the DOTS physical world at the same time, so that default colliders and DOTS colliders exist at the same time if you need to use default colliders in MonoBehaviour classes.

Current project use cases:

Keep default colliders to work with Legacy ragdoll or with Hybrid Mono player car.
Cloning of physical shapes from the main scene to be split them into subscene pieces by using SubSceneChunk Creator or cloned into the main subscene by using Entity Subscene Generator.

Note

The tool can only use one tool at a time, either an Entity Subscene Generator or a SubSceneChunk Creator.

Settings

Clean components : removes all components from the physics shape.
Clean childs : removes all childs from the physics shape.
Search type : searching shapes by layer or tag.

Proccesing type :

Stay previous : cloning found PhysicsShape or Collider to subscene, useful to keep default collider and Unity.Physics collider running at the same time.
Disable collider : cloning found PhysicsShape or Collider to subscene and disable it.

Preinit layer : enable pre-init cull state for physics objects.

New layer : assigns new layer for cloned shape.
